Front Runner  |  SKU: 118634612

Canopy Load Bar Kit / 1475mm

$298.00 USD $327.80
Shipping calculated at checkout.

The Canopy Load Bar Kit was made for travelers who need additional canopy storage capacity, but don’t want to sacrifice a low-profile build. These 1475mm bars use the same durable aluminum slats as the Slimline II Roof Rack, allowing you to mount Front Runner accessories.

Description

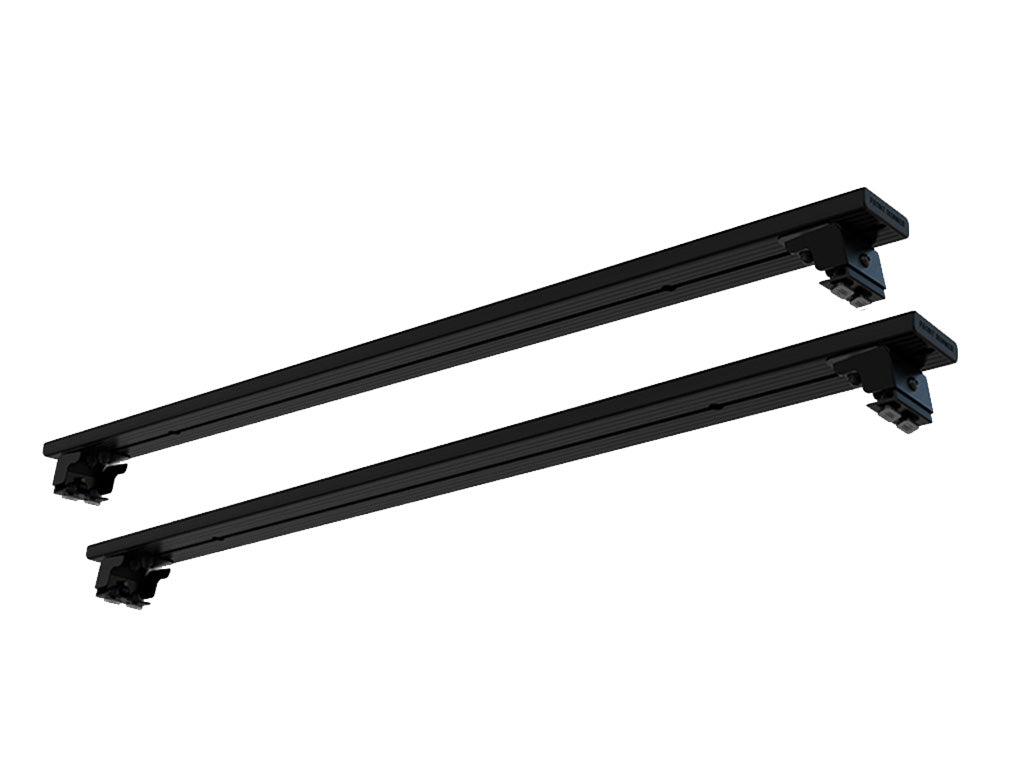

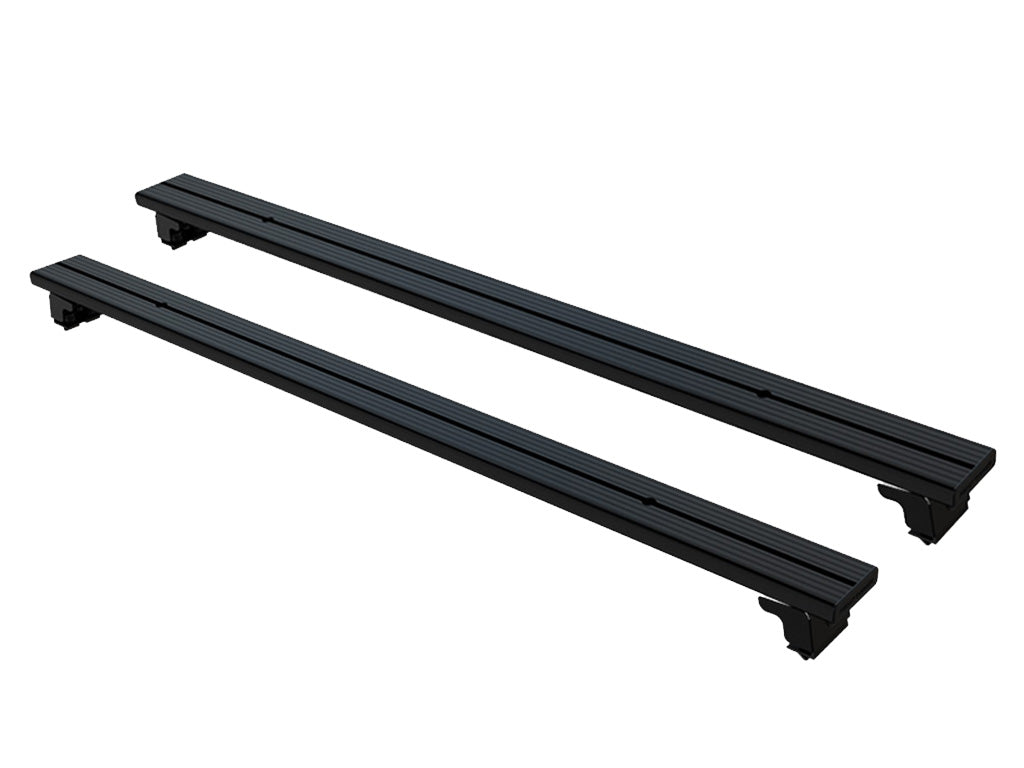

  • Comes with all hardware and components needed to fit load bars on a vehicle, including four (4) mounting feet, two (2) 1475mm load bars, an installation kit and fitting instructions.

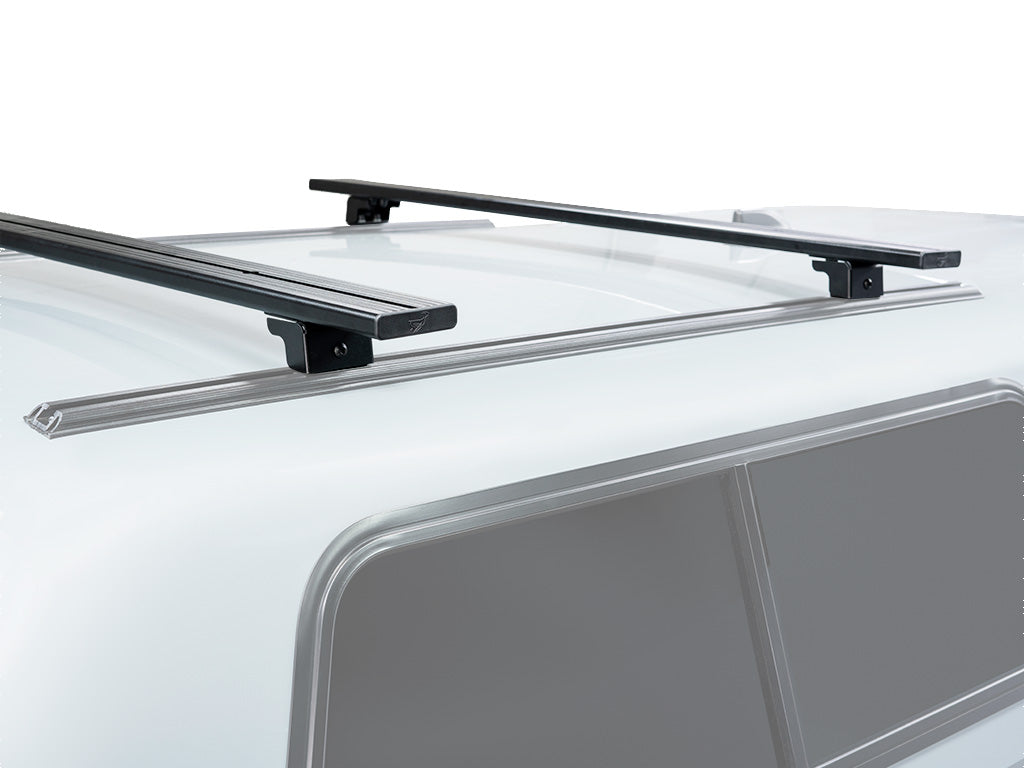

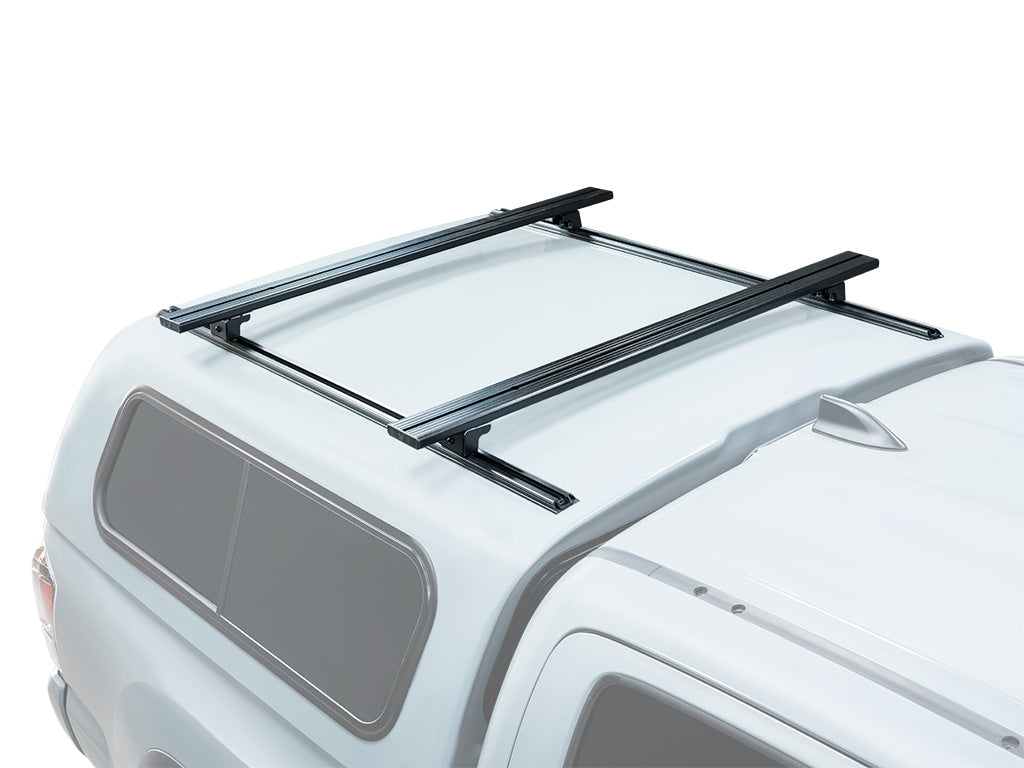

  • These load bars are mounted to your canopy via a set of supplied mounted feet.

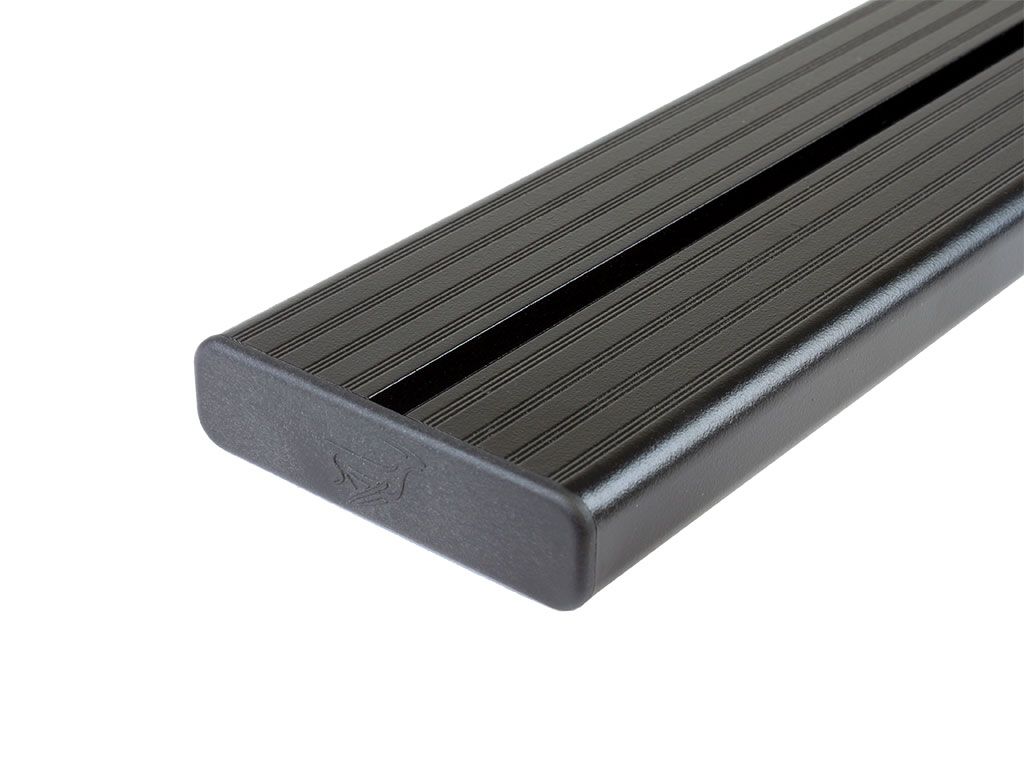

  • Uses the same strong, corrosion-free aluminum slats found in Front Runner Slimline II Racks.

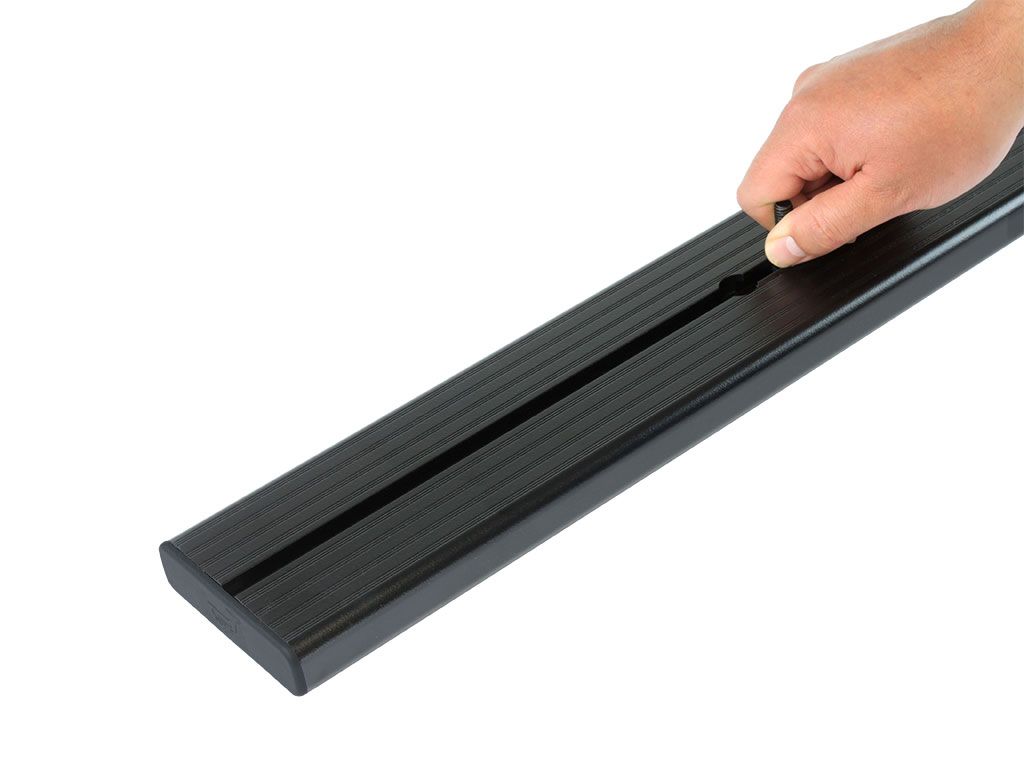

  • The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.
  • The load bars and mounting system can be used in the future as components to build a complete Front Runner roof rack.
  • Made from steel and durable, weather-resistant black powder-coated aluminum.

Specs

KRCA0011 - Canopy Load Bar Kit / 1475mm - by Front Runner


Consisting of:
2x FASS012 - Foot Set / 40mm - 50mm
1x LBSK017 - Roof Load Bar Pair 1475mm(W)


Material Used:
Black epoxy powder - coated T6 aluminium


Approximate Installed Weight: 6kg (13.23lbs)


The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.


To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.


If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle's rain gutters.


If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.


Shipping Dimensions:
Width: 110mm (4")
Length: 1585mm (63")
Height: 135mm (6")


Shipping Weight:
Weight: 5.6kg (12lbs)

Install

*A PDF viewer is required to view the fitting instructions.

Video
