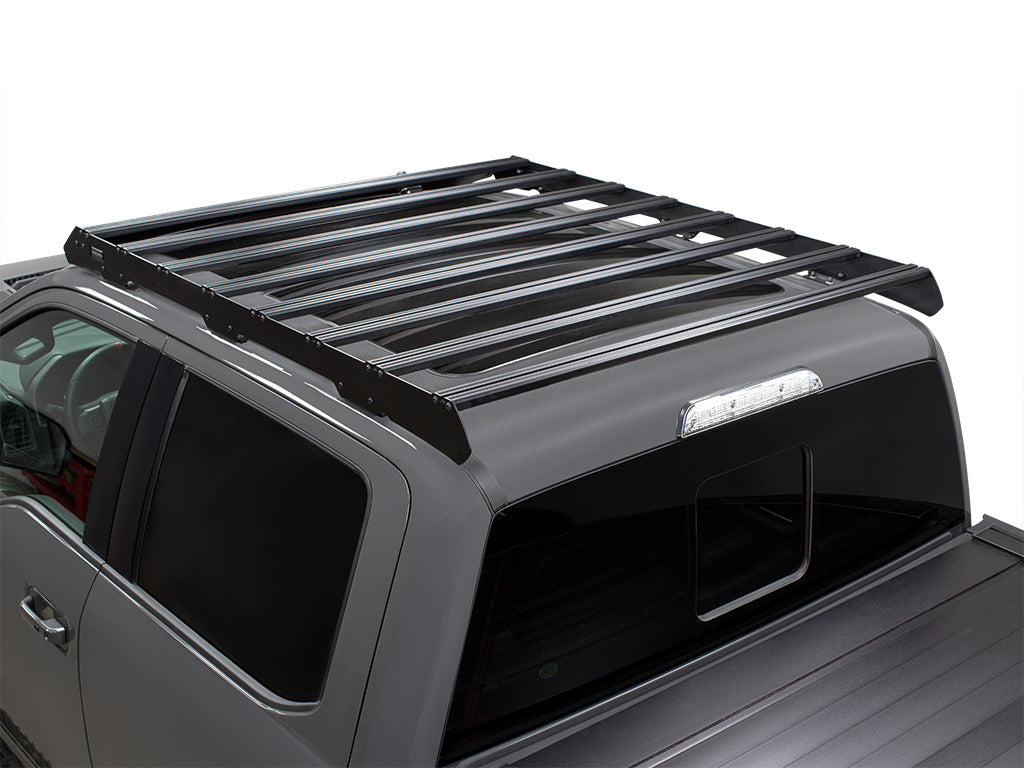

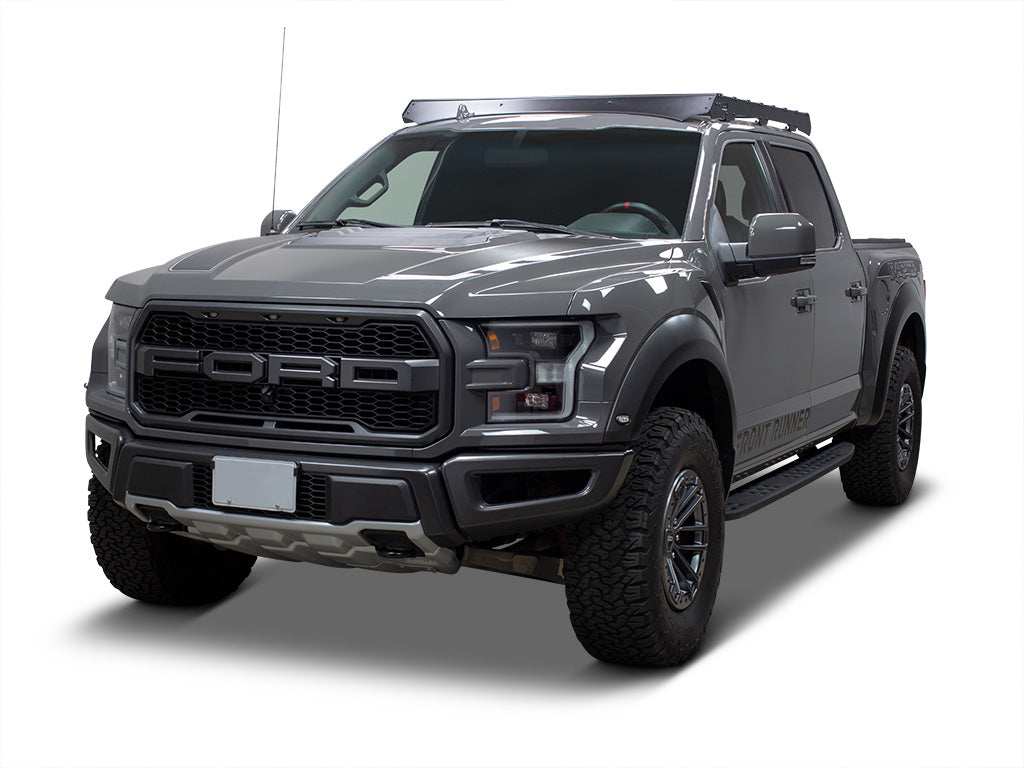

Ford F-150 Super Crew (2018-2020) Slimsport Roof Rack Kit

• This low profile flat deck Slimsport rack has a load carrying area of 1475mm (58" ) x 1405mm (55,3").
• The sleek side rails have integrated mounting feet. Mounting feet also have additional brace brackets for added strength.
• The high-strength aluminum slats have top and bottom T-slots suitable for all Front Runner top mount accessories.
• Effortlessly access your Slimsport cargo with the Handle/Light Slimsport Rack Bracket.
• Easily add on the Slimsport/Slimpro Van Side Mount Accessory Bracket / Small (sold separately) for all Front Runner side mount accessories.

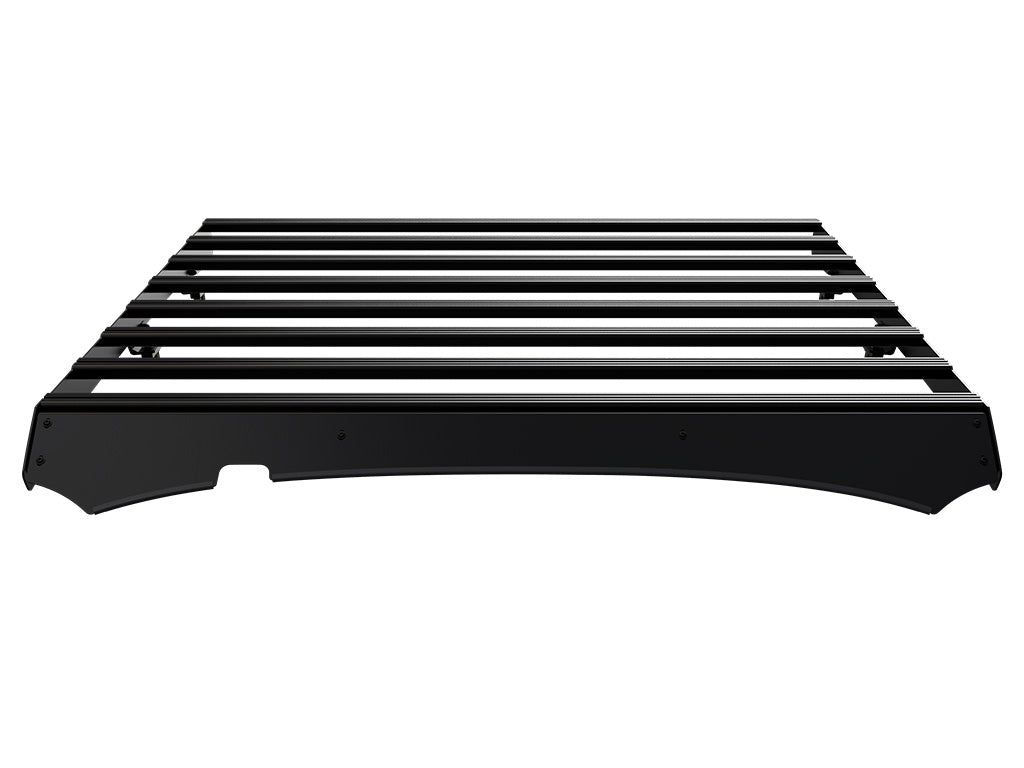

• The included standard full fairing with rubber edge trim makes the rack ultra-quiet and allows full operation of the moonroof
• Need a lightbar? The optional Ford F-150 Crew Cab w/ Sunroof (2015-2020) Slimsport Rack 40" Light Bar Wind Fairing (sold separately) has a 40" cutout to allow the use of 40" LED Slim Light Bar VX1000-CB SM / 12V/24V / Single Mount (sold separately).
• Fitment guide and all mounting hardware included.
• 6"/T30 Torx Allen Key for Slimsport Rack is required for installation (sold separately).
• Drilling required for fitment (all hardware included).
• Note: Under Rack Tables and some side mount accessories such as Hi-Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets are not compatible with the Slimsport rack kit range.
• Note: Compatible with 'shark fin' antenna, not compatible with 'puck style' antenna.

KSFF003T - Ford F-150 Super Crew (2018-2020) Slimsport Roof Rack Kit - by Front Runner

Consisting of:
1 x Ford F-150 Super Crew (2018-2020) Slimsport Roof Rack Kit
1 x RRAC233 - FORD F-150 SCREW SRACK WIND FAIRING
Installation Hardware
Fitting Instructions

Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel

Assembled Rack Kit Dimensions: 1676mm (66“) L x 1411mm (55.6“) W x 113mm (4.4“) H

Approximate Installed Weight: 32.67kg (72.02lbs)

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimsport Rack add 60mm-70mm (2.4"-2.8") to the highest point of your roof.

Shipping Dimensions:
Width: 325mm (13")
Length: 1700mm (67")
Height: 160mm (6")

Shipping Weight:
Weight: 32.67kg (72lbs)
