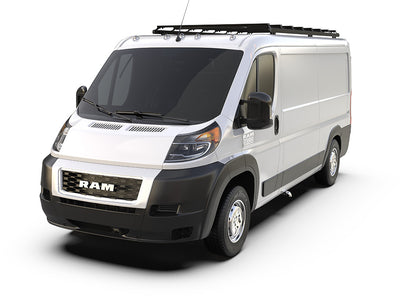

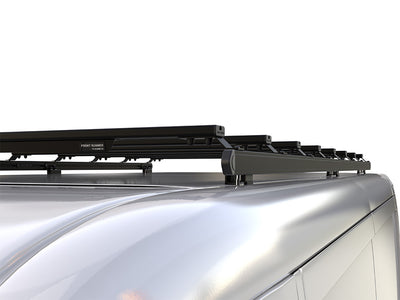

RAM Pro Master 3500 (136” WB/Low Roof) (2014-Current) Slimpro Van Rack Kit

• Compatible with RAM Pro Master 3500 (136” WB) (2014-Current) low roof vans with a vehicle length of 5427mm / 213.7".
• Load-carrying area: 2974mm (117.1") x 1565mm (61.6").
• Six (6) Mounting Feet secure into van's existing factory mounting points.
• Included Slat Bracket can be inverted for a lower profile at 85mm (3.4") height, or left in standard configuration at 127mm (5").
• Compatible with most Front Runner accessories.
• Slats can be configured to any spacing to accommodate roof AC, vents, or any other accessories.
• Fitment guide and all mounting hardware are included. No drilling or modification required.
• All Front Runner racks are backed by a limited lifetime warranty.*

KVRP007T - RAM Pro Master 3500 (136” WB/Low Roof) (2014-Current) Slimpro Van Rack Kit - by Front Runner

Consisting of:
3x FAVF002 - FPCR Foot Set - by Front Runner
1x RRAC207 - Van Rack Joiner Kit
2x RRAC208 - Van Rack Side Profile End Caps
4x RRNS1475 - Narrow Slat / 1475mm (Pair)
1x SPVT002 - Van Rack Side Profile / 1358mm
1x SPVT003 - Van Rack Side Profile / 1560mm
1x WDST013 - Wind Deflector Van Rack 30mm Lip

Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel

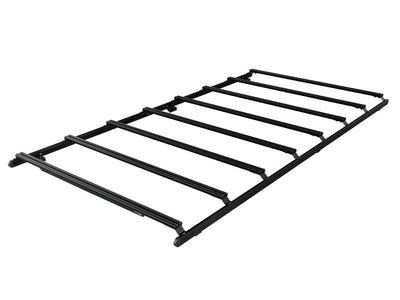

Assembled Rack Kit Dimensions:
2974mm (117.1") L x 1565mm (61.6") W x 127mm (5") H

Approximate Installed Weight: 31.49kg (69.42lbs)

RAM Pro Master Van Rack Kit heights are adjustable from 80mm (Z bracket inverted) to 130mm (Z bracket standard mounting) all measurements are taken from bottom of roof ditch to top of the rack slat.

The slat T slots and side profiles take standard M8 hex bolts top and bottom.

Shipping Dimensions:
Width: 300mm (12")
Length: 1805mm (71")
Height: 195mm (8")

Shipping Weight:
Weight: 36.35kg (80lbs)
